 Double color pad printer with ink cup (Transport belt workbench)
 Product ID:IF-160CE2/IF-200CE2
Description



■ parameter(  IF-P160CE2 / IF-P200CE2 /)

ink cup steel plate

100x200mm

    150x300mm

 SPEED(hr)

1580pcs

1600pcs

printing area

Ø75mm

Ø120mm

inkcup diameter(mm)

Ø82mm

Ø130mm

Body Size(LxWxH)

860x710x1400mm

1050x910x1450mm

WEIGHT

170kg

210kg

Air pressure

6Bar

6Bar

POWER & Voltage

110v or 220v   60/50Hz 20w110v or 220v   60/50Hz 20w

■ comment:

[1].This machine adopts thick cast aluminum casting, So that provides the machine long-termand stable operation of the platform  to ensure.The machine structure and layout  introduced Germany printing machine design, layout  reasonable, beautiful and generous.the For example, Germany tampo pad printer.And In accordance with years of our Industry experience,Get good improvement for it.

[2].   Main power component of this pad printer using pneumatic components of FESTO from German, So that it provided IF printer guarantee of stable and long-term work.. Its accessory is made by  the High strength, high quality aluminum, so that lasting and accuracy use become reality.



    [3].The machine shell using high-quality paint coating, anti most of chemical solvents, so that clean the dirt is easy.

    [4]. MCU computer program control for the inter,Manipulation program is simple and practical, very easy to use for user.The form of thin-film switch control panel, so it is high-grade and Operation of sensitive,Convenient to replace .

    [5].The above picture is ink cup struction system, IF can change the struction to  ink well ink system According to your request.

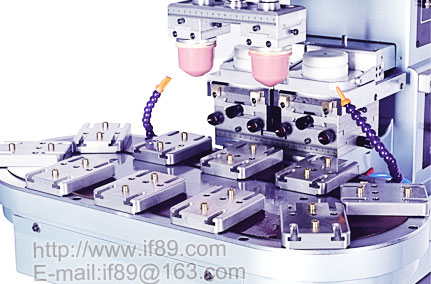

    [6]. This machine adopts 10 /14 station conveyor type working bench, So the pad printer can continuous feeding, continuous printing, Two color  printing  completely  within  one cycle,  printing precision, efficiency doubled.It Is the best choice for batch production.

     [7].The pad printer with printing head cleaning automatic unit and hot air drying unit (optional according to the actual work requirements).
