■ parameter(  IF-125SE2 / IF-160SE2 / IF-200SE2)

ink cup steel plate

75x150mm

    100x200mm

SPEED（hr）

1400pcs

Printing area

直径50mm

      直径75mm

 inkcup diameter(mm)

直径60mm

直径86mm

Cylinder stroke

60mm

100mm

（Cylinder stroke）

125mm

160mm

（Cylinder stroke）

80mm

100mm

MACHINE SIZE LXWXH（mm）

590x520x1240mm

770x650x1400mm

WEIGHT

80kg

118kg

Air pressure

6Bar

6Bar

POWER

■  Comment：

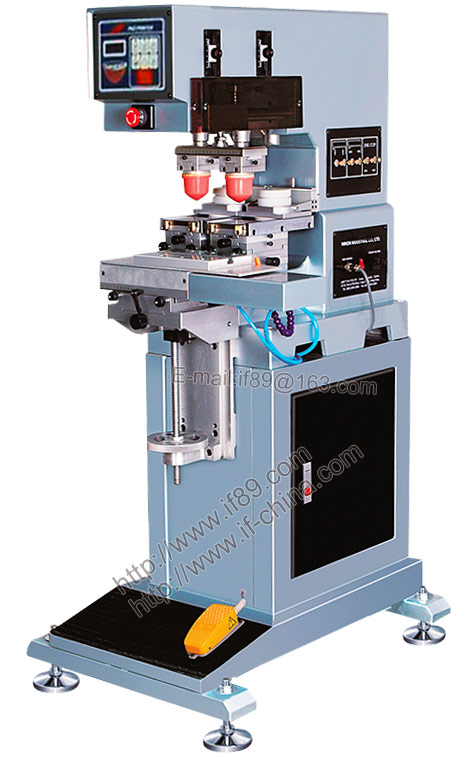

[1].This machine adopts thick cast aluminum casting, So that provides the machine long-termand stable operation of the platform  to ensure.The machine structure and layout  introduced Germany printing machine design, layout  reasonable, beautiful and generous.the For example,Germany tampo pad printer.And In accordance with years of our Industry experience,Get good improvement for it.

[2].   Main power component of this pad printer using pneumatic components of FESTO from German, So that it provided IF printer guarantee of stable and long-term work.. Its accessory is made by  the High strength, high quality aluminum, so that lasting and accuracy use become reality.

[3].The machine shell using high-quality paint coating, anti most of chemical solvents, so that clean the dirt is easy.

[4]. MCU computer program control for the inter,Manipulation program is simple and practical, very easy to use for user.The form of thin-film switch control panel, so it is high-grade and Operation of sensitive,Convenient to replace .

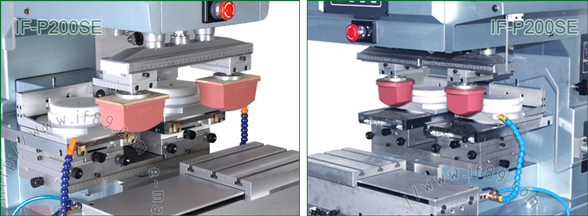

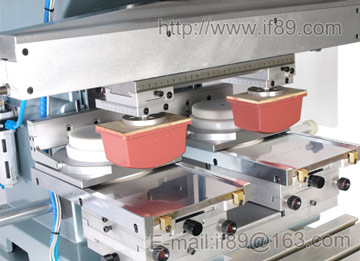

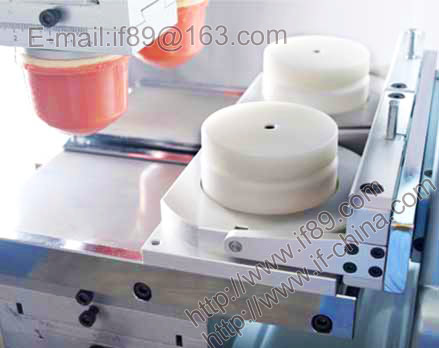

 [5].The above picture is ink cup struction system, IF can change the struction to  ink well ink system According to your request.

 [6]. The machine adopts  the upper and lower and angle Adjustable  workbench .very convenient printing position adjustment.It  is suitable for the printing of midsize areas.

[7].The pad printer with printing head cleaning automatic unit and hot air drying unit (optional according to the actual work requirements).
