■ parameter

 steel plate

75x150mm

 SPEED（hr）

2100p

 printing area

55x55mm

inkcup diameter(mm)

60mm

Cylinder stroke(mm)

100mm

（Cylinder stroke）

125mm

（High Cylinder stroke）

80mm

MACHINE SIZE LXWXH

（mm）

590x480x1250mm

WEIGHT

70kg

Air pressure（bar）

6Bar

POWER

110v or 220v

60/50Hz 20w

■ COMMENT：

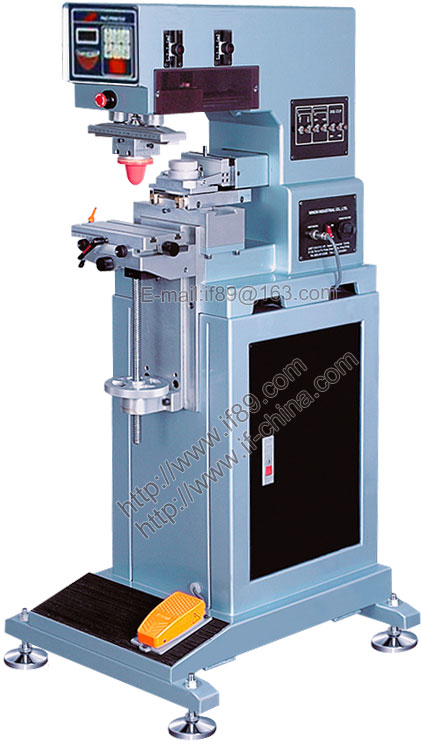

[1].This machine adopts thick cast aluminum casting, So that provides the machine long-termand stable operation of the platform  to ensure.The machine structure and layout  introduced Germany printing machine design, layout  reasonable, beautiful and generous.the For example,Germany tampo pad printer.

And In accordance with years of our Industry experience,Get good improvement for it.

[2].   Main power component of this pad printer using pneumatic components of FESTO from German, So that it provided IF printer guarantee of stable and long-term work.. Its accessory is made by  the High strength, high quality aluminum, so that lasting and accuracy use become reality.

[3].The machine shell using high-quality paint coating, anti most of chemical solvents, so that clean the dirt is easy.

[4]. MCU computer program control for the inter,Manipulation program is simple and practical, very easy to use for user.The form of thin-film switch control panel, so it is high-grade and Operation of sensitive,Convenient to replace .

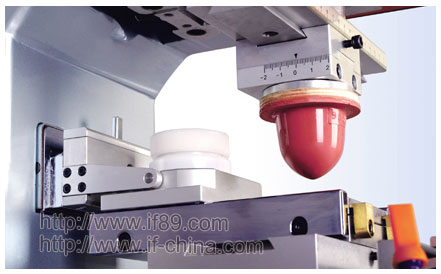

 [5].The above picture is ink cup struction system, IF can change the struction to  ink well ink system According to your request.

 [6]. The machine adopts  the upper and lower and angle Adjustable  workbench .very convenient printing position adjustment.It  is suitable for the printing of midsize areas.

[7].The pad printer with printing head cleaning automatic unit and hot air drying unit (optional according to the actual work requirements).
