STEEL PLATE SIZE | 100X200MM |
PRINT SPEEN(P/Hr) | 5200pcs |
PRINTING AREA(MM) | 78X78MM |
INK CUP DIA. | 90MM |
PRINTING CYLINDER STROKE(MM) | 80MM |
BEFORE AND AFTER CYLINDER STROKE | 160MM |
DIMENSION LX W X H | 1088 X 1398 X 1380mm |
WEIGHT | 480KG |
AIR SOURSE PRESSURE | 6Bar |
POWER AND WATTAGE | 110V or 220V 60/50Hz 1500w |
■comment: [1].This machine adopts thick cast aluminum casting, So that provides the machine long-termand stable operation of the platform to ensure.The machine structure and layout introduced Germany printing machine design, layout reasonable, beautiful and generous.the For example,Germany tampo pad printer.And In accordance with years of our Industry experience,Get good improvement for it.
[3].The machine shell using high-quality paint coating, anti most of chemical solvents, so that clean the dirt is easy.
[4]. PLC computer program control for the inter,Manipulation program is simple and practical, very easy to use for user.This machine uses the Japanese Panasonic PLC touch screen panel, sensitive and convenient operation.
[5].The printer adopt ink cup struction system, Ink saving, environmental protection.

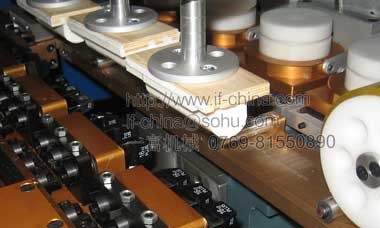

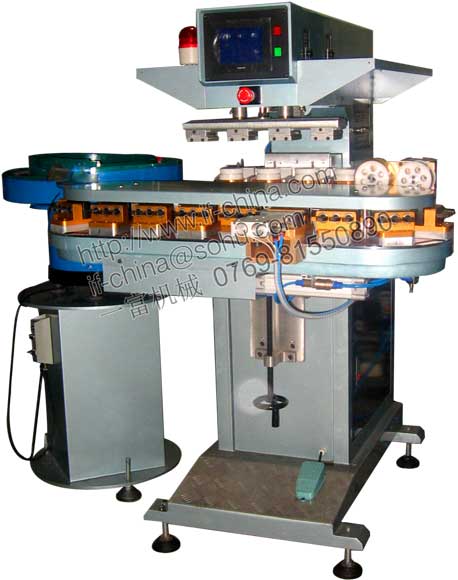

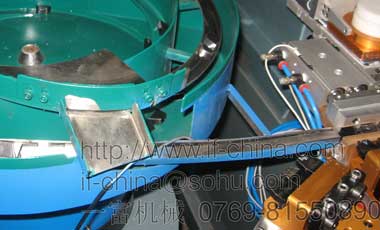

[6]. Automatic Hanger size tag pad printer integrate : automatic in feed system and three side printing workstation with automatic discharge unit.So it Save labor and Improve the printing efficiency for you. | |
