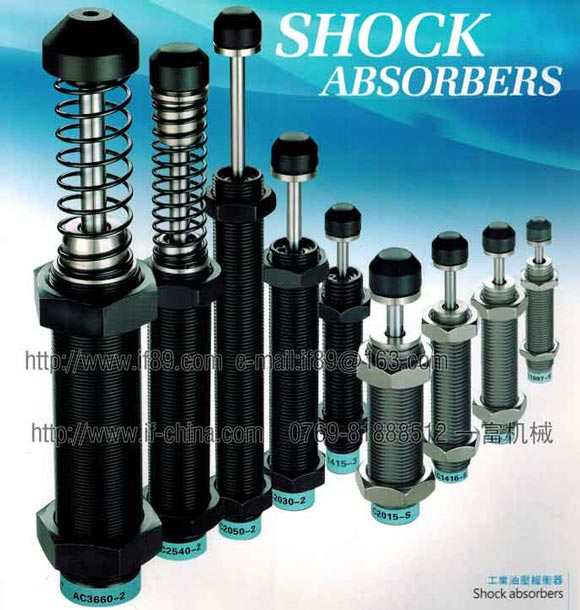

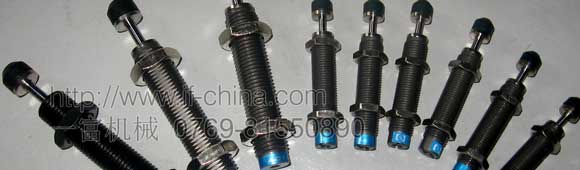

---移印机专用油压缓冲器系列(油顶），适合任何机械使用，质量优秀，吸起德国FESTO 及 日本SMC优点，价格实惠，耐用。欢迎批发零售.
型号 | 行程 | 最大吸收能量 | 小时吸收能量 | 最大有效重量 | 最高撞击速度 | 工作温度 | 重量 |
AC-0806-S N | 6 | 3 | 7000 | 6 | 2.5 | -10~+80 | 15 |
AC-0806-S | 6 | 3 | 7000 | 6 | 2.5 | -10~+80 | 17 |
AC-1007-S N | 7 | 6 | 12400 | 12 | 3.5 | -10~+80 | 25 |
AC-1007-S | 7 | 6 | 12400 | 12 | 3.5 | -10~+80 | 28 |
AC-1210-S N | 10 | 12 | 22500 | 22 | 4 | -10~+80 | 29 |
AC-1210-S | 10 | 12 | 22500 | 22 | 4 | -10~+80 | 32 |
AC-1412-S N | 12 | 20 | 33000 | 40 | 5 | -10~+80 | 65 |
AC-1412-S | 12 | 20 | 33000 | 40 | 5 | -10~+80 | 70 |
AC-2015-S N | 15 | 59 | 38000 | 120 | 5 | -10~+80 | 150 |
AC-2015-S | 15 | 59 | 38000 | 120 | 5 | -10~+80 | 160 |
AC-2525-S N | 25 | 80 | 60000 | 180 | 5 | -10~+80 | 295 |
AC-2525-S | 25 | 80 | 60000 | 180 | 5 | -10~+80 | 280 |
AC-2725-S N | 25 | 147 | 72000 | 270 | 5 | -10~+80 | 360 |
AC-2725-S | 25 | 147 | 72000 | 270 | 5 | -10~+80 | 375 |

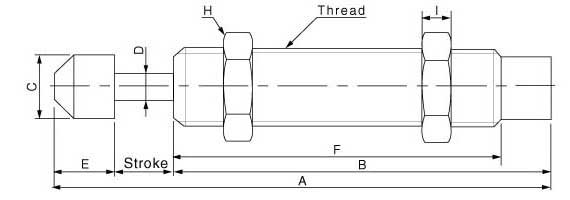

型号 | 螺纹 | 行程 | A | B | C | D | E | F | G | H | I |
AC-0806-S N | M 8X1.0 | 6 | - | 40.6 | - | 2.8 | - | 33.6 | 2 | 11 | 3 |
AC-0806-S | M 8X1.0 | 6 | 55.2 | 40.6 | 6.6 | 2.8 | 8.6 | 33.6 | 2 | 11 | 3 |
AC-1007-S N | M 10X1.0 | 7 | - | 47 | - | 3 | - | 39 | 3 | 12.7 | 3 |
AC-1007-S | M 10X1.0 | 7 | 62.6 | 47 | 8.6 | 3 | 8.6 | 39 | 3 | 12.7 | 3 |
AC-1210-S N | M 12X1.0 | 10 | - | 50 | - | 3 | - | 45.5 | - | 14 | 4 |
AC-1210-S | M 12X1.0 | 10 | 68.4 | 50 | 10.3 | 3 | 8.4 | 45.5 | - | 14 | 4 |
AC-1412-S N | M 14X1.5 | 12 | - | 67 | - | 4 | - | 58 | 4 | 19 | 5 |
AC-1412-S | M 14X1.5 | 12 | 90 | 67 | 12 | 4 | 11 | 58 | 4 | 19 | 5 |
AC-2015-S N | M 20X1.5 | 15 | - | 73 | - | 6 | - | 62 | 4 | 26 | 8 |
AC-2015-S | M 20X1.5 | 15 | 103 | 73 | 18 | 6 | 15 | 62 | 4 | 26 | 8 |
AC-2525-S N | M 25X1.5 | 25 | - | 92 | - | 8 | - | 82 | - | 32 | 10 |
AC-2525-S | M 25X1.5 | 25 | 135.8 | 92 | 22 | 8 | 18.8 | 82 | - | 32 | 10 |
AC-2725-S N | M 27X1.5 | 25 | - | 111 | - | 8 | - | 86 | 5 | 36 | 6 |
AC-2725-S | M 27X1.5 | 25 | 142.8 | 99 | 22 | 8 | 18.8 | 86 | 5 | 36 | 6 |
